LED Power Supplies

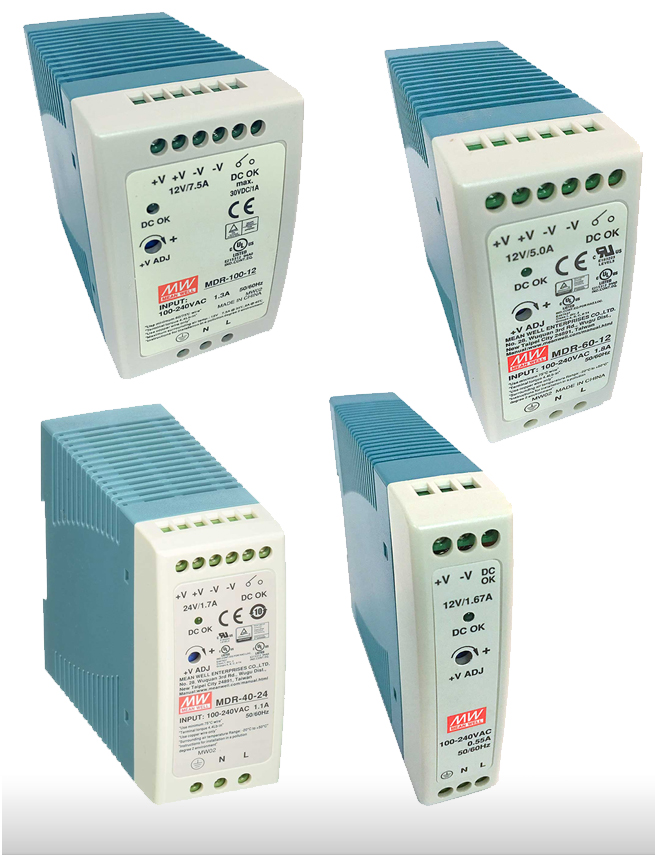

Multi-Voltage Power Supplies For LED Lighting Plus IL-RSP 320V Power Supply For LED Lighting

Multi-Voltage Power Supplies, click items below to view specs.

20V Power Supply
40V Power Supply
60V Power Supply
100V Power Supply

Universal AC input/Full range
Built-in active PFC and over temp. protection (MDR-100)
Class I, Div 2 Hazardous Locations T4(MDR-40/60)
Protections: Short circuit / Overload / Over voltage
Built-in constant current limiting circuit (MDR-20~100)
Cooling by free air convection
Working temperature: -20~+70oC by models
Can be installed on DIN rail TS-35 / 7.5 or 15
No load power consumption <0.75W (<1W for MDR-100)
DC OK signal output (MDR-10/20)
DC OK relay contact (MDR-40/60/100)
DC output voltage adjustable (MDR-20~100)
LED indicator for power on
5 year warranty

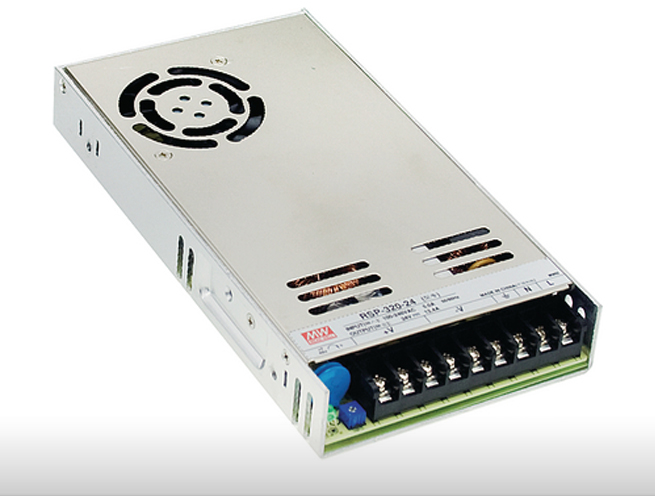

IL-RSP 320V Power Supply For LED Lighting

AC input range selectable by switch
Protections: Short circuit / Overload /
Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment) approved
LED indicator for power on
100% full load burn-in test

VIEW SPECIFICATION SHEET
